| Dimensions | 48.3 × 44.8 × 23.2 cm |
|---|---|
| Product name | 12 Frame Reversible Honey Extractor |
| Motor Voltage and Power | 110V/60Hz, 230V/50Hz, 110W |
| Material | 304SS inner basket frames + 201SS barrel |
| Max. Rotation Speed | 400RPM |
| Size of Inner Basket Frame | 42*26cm |
| Barrel Diameter | 660mm |
| Barrel Height | 702mm |
| Barrel Thickness | 0.6mm/0.8mm |
| Inner Basket Frames Qty | 12pcs (can extract 12 honeycombs simultaneously) |
| Suitable Honeycomb Size | Length: 432-483mm,Width: 136-232mm |
| Supported Structure | Black powder coating, 3 standing legs |
| Plug | Australian/American/European/British type for option |
| Accessories | One honey gate with 3 legs |
| Features | PC endurance plate, integrated motor and control box |
| Operating Principle | Centrifugal force |
Product Introduction
The 12 Frame Reversible Honey Extractor operates using centrifugal force to extract honey from the honeycombs. By spinning the frame basket, the honey is flung out while keeping the wax comb intact. This function allows the bees to reuse the comb, promoting their productivity. The extractor's integrated motor and simplified control area enable easy operation and precise speed control, ensuring optimal honey extraction.
Product Details

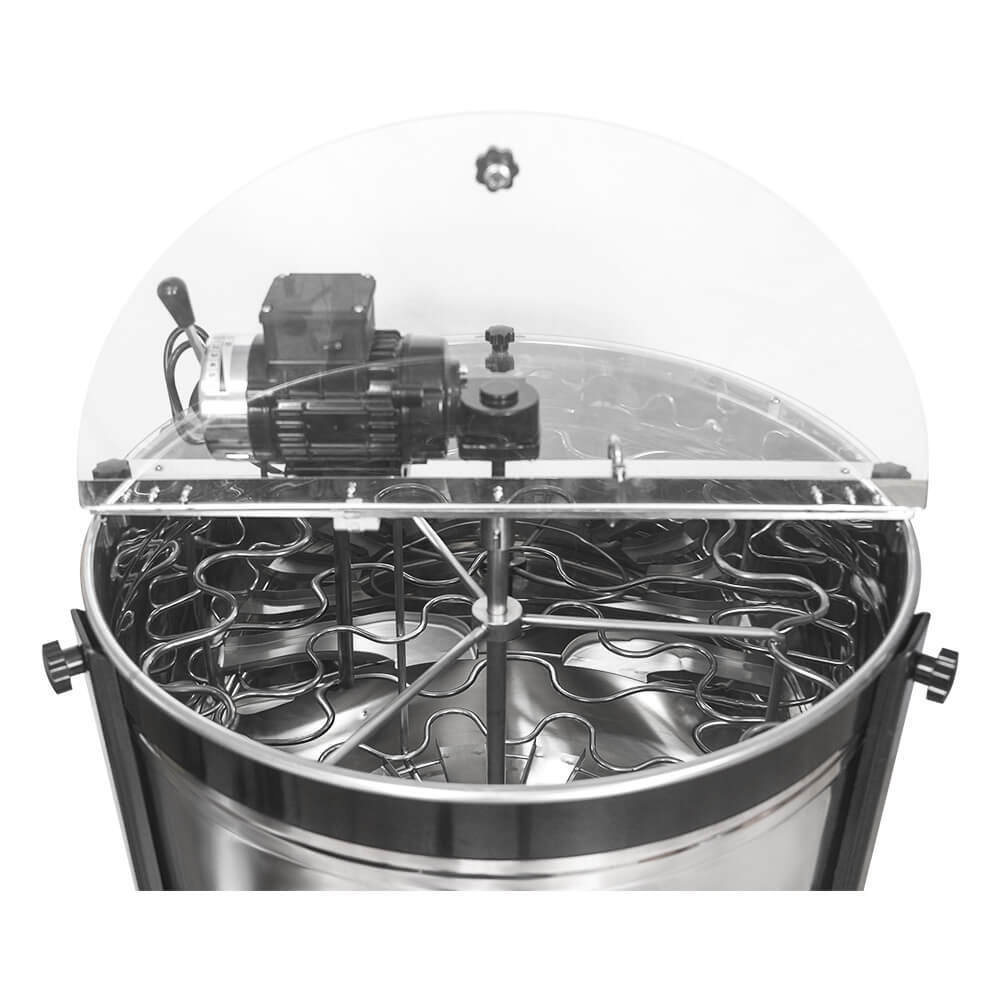

- Integrated Motor with Control Area: Ensures long-term stable operation and simplifies electronic control
- Simplified Control Area: Features a single gear lever for step-less rotation speed adjustment and reversible rotation direction
- Replaceable Inner Basket Frames: Compatible with standard radial 6/8 frames basket frames or Dadant 4 frames basket frames
- Max. Rotation Speed: Up to 400 RPM for efficient extraction of high baume degree honey
Advantages of the Electric Honey Extractor
- High Sensitivity and Easy Operation: Saves time and labor during honey extraction
- Highly Polished Stainless Steel and Seamless Welding Construction: Provides durability and hygiene

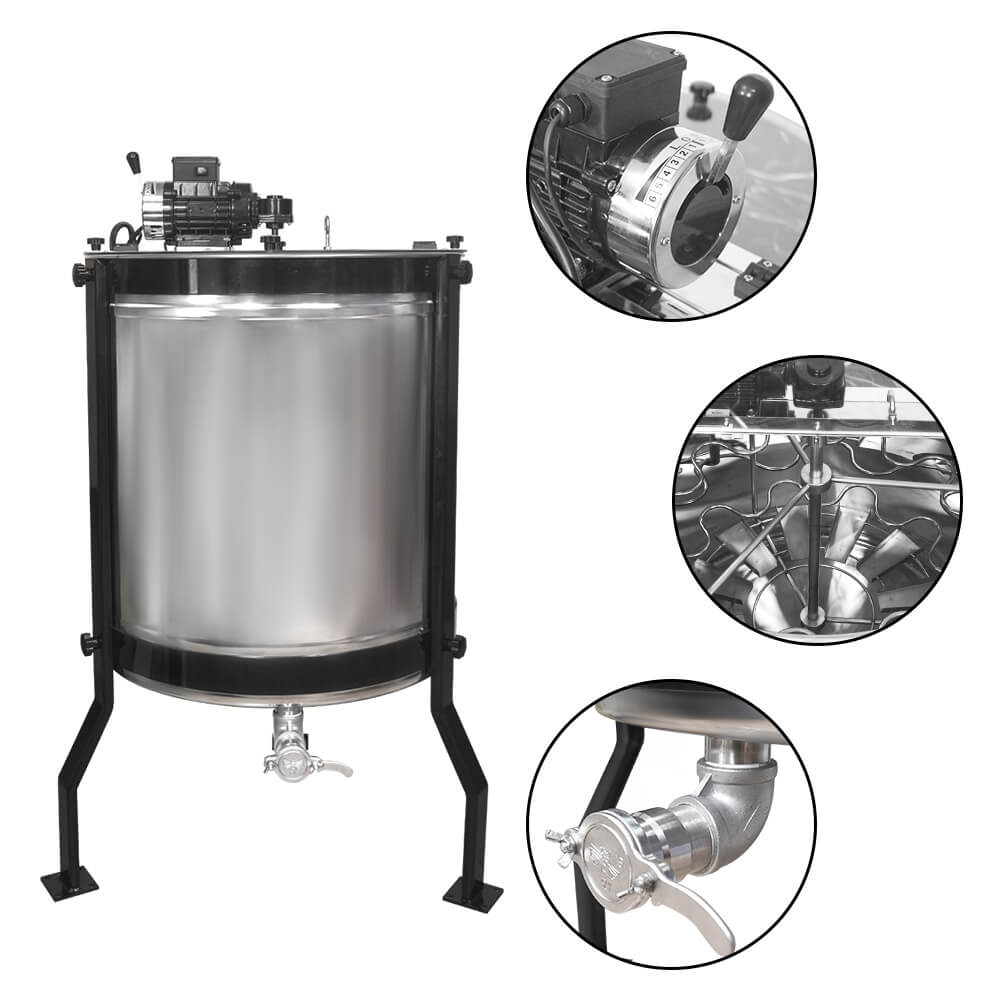

- Assembled Gear and Honey Gate: Allows for convenient honey collection
- Compatible with Shallow, Medium, or Deep Frames: Accommodates various frame sizes
- Quick Turnover of Honey Comb: Facilitates efficient extraction within the barrel
- High-Efficiency Production and Stable Operation: Ensures consistent honey extraction results
- Manual and Electric Types Available: Choose the variant that suits your beekeeping needs
- Wide Range of Frame Capacities: Options available from 2 frames up to 72 frames to meet different scale requirements
